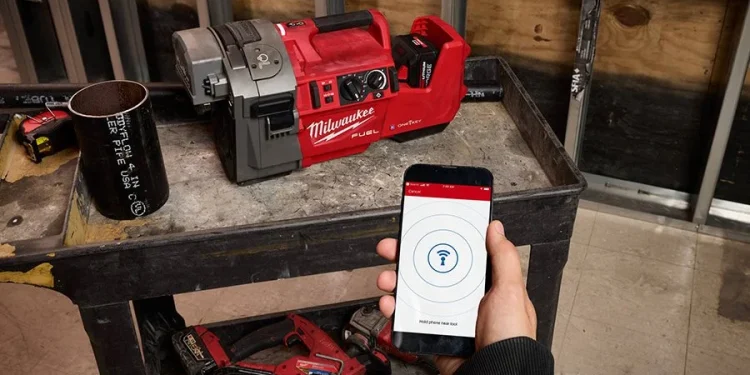

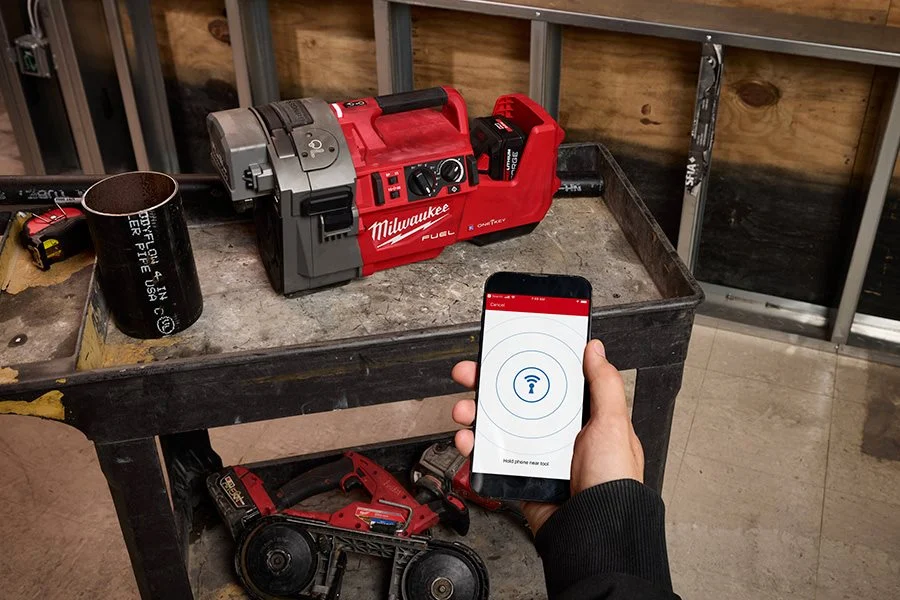

The MILWAUKEE® M18 FUEL™ Roll Groover provides outstanding precision through advanced technology and straightforward controls, making this the easiest way to groove on site.
Uniquely designed for grooving pipes in new construction and service, the M18 FUEL™ Roll Groover delivers the easiest and most productive way to groove 1 ¼” to 4” pipes. Maximising productivity of on-site grooving, this roll groover delivers the fastest setup to finish and the easiest transportation around the job site.
Eliminating the limitations of a cord, the M18 FUEL™ Roll Groover’s compact design allows users to easily store the tool in their job box or truck and transport straight to their point of installation. With quick setup, users are provided with the ability to work wherever it is most convenient.
Taking direction from the operator and automating the grooving process, the roll groover eliminated ratcheting and cranking. The integrated control panel enables the operator to select pipe type, schedule, and size. Operators can also adjust groove depth using the groove depth offset dial to tune the roll groover to the specific pipe batch they are working on and complete the process with repeated accuracy. This simple operation is a revolution in control and accuracy, while reducing muscle effort compared to today’s solutions by enabling users to achieve in-spec grooves hands free.
MILWAUKEE® is committed to improving productivity by providing performance-driven and trade-focused solutions so users can perform an entire day’s work on one battery system. The M18 FUEL™ Roll Groover is fully compatible with the entire M18™ line, now offering more than 315 solutions.
*M18 FUEL™ is engineered for the most demanding tradesmen in the world. Delivering unrivalled performance, all M18 FUEL™ products feature three MILWAUKEE®-exclusive innovations—The POWERSTATE™ Brushless Motor, REDLITHIUM™ Battery Pack and REDLINK PLUS™ Intelligence Hardware and Software—that deliver outstanding power, run time, and durability on the job site. Simply put, M18 FUEL™ tools are the most powerful 18V cordless tools in their class.
Specifications
M18 FUEL™ Roll Groover
M18 FRGRO114-802C
- Battery Type: Lithium-ion
- Battery System: M18 FUEL™
- Depth Settings: Groove depth adjustment knob
- Diameter of Orbit: ≥ 127
- Handle
- Max Material Thickness: 5.6 mm
- Max Pipe Diameter: 114.3 mm
- Pipe Diameter: 42.4 – 114.3 mm
- Weight with Battery Pack (EPTA): 19.8 kg (M18 FB8)
Kit Includes: (1) M18 FUEL™ Roll Groover, (2) M18 FB8 Battery packs, (1) M12-18 FC Charger, (1) Kitbox
M18 FUEL™ Roll Groover – Coming 2026
M18 FRGRO2-122C
- Battery Type: Lithium-ion
- Battery System: M18 FUEL™
- Depth Settings: Groove depth adjustment knob
- Diameter of Orbit: ≥ 108
- Handle
- Max Material Thickness: 7.1 mm
- Max Pipe Diameter: 168.3 mm
- Pipe Diameter: 60.3 – 168.3 mm
- Weight with Battery Pack (EPTA): 20.2 kg (M18 FB12)
Kit Includes: (1) M18 FUEL™ Roll Groover, (2) M18 FB12 Battery packs, (1) M12-18 FC Charger, (1) Kitbox
